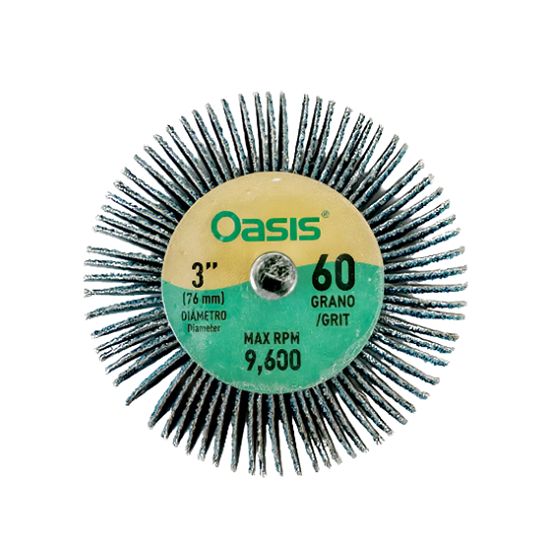

Shaft-mounted Flap Wheel

Shaft-mounted Flap Wheel
Details:
The shaft-mounted flap wheel is a grinding tool that integrates a flap wheel with a drive shaft. It is widely used in surface grinding, polishing, and rust removal processes for materials such as metal, wood, and plastic. With its efficient grinding capability and convenient operation, it is commonly found in fields like industrial manufacturing, furniture processing, and automotive maintenance.
Shaft-mounted flap wheel are suitable for surface grinding and polishing.
Send Inquiry
Download
Description
Technical Parameters

Key features



1. Easy installation, high adaptability: Directly fits common power tools, no extra adapters needed.

2. Efficient grinding, wide coverage: Multi-layer design for large-area contact, rapid material removal.

3. Uniform polishing, versatile applications: Flexible flaps adapt to curved / irregular surfaces, suitable for various materials



Introduction

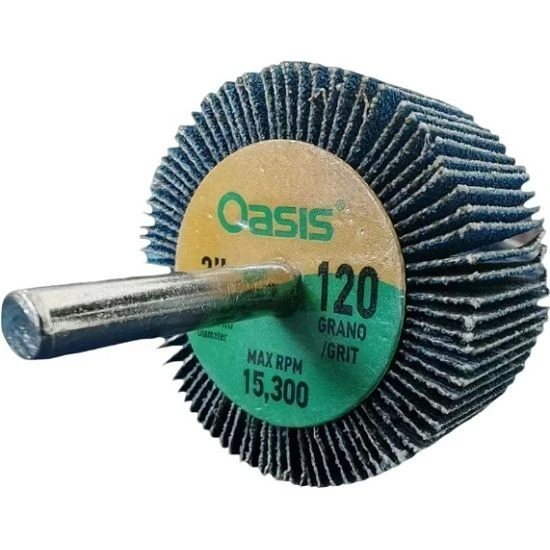

The shaft-mounted flap wheel is a grinding tool integrating a flap wheel and a drive shaft. It consists of multi-layer radial sandpaper, a metal drive shaft and a central base, with the sandpaper mostly made of alumina or silicon carbide. It features easy installation, adapting to angle grinders and other tools, with high grinding efficiency, wide coverage and uniformity. It can fit curved surfaces, adapt to multiple materials, and its multi-layer design extends service life. It is widely used in grinding, polishing and rust removal in industrial manufacturing, furniture processing, auto repair and other fields.



Specifications



Name

Shaft-mounted flap wheel

Main abrasive ingredients

Aluminum oxide

Ingredient type

White corundum

Type

Cylindrical



Model And Parameters



Size (mm)

Abrasive

CD (mm)

SD (mm)

L (mm)

Grit size

20*25*6

WA

20

6

25

60 / 80 / 120 / 180 / 240 / 320

25*25*6

WA

25

6

25

60 / 80 / 120 / 180 / 240 / 320

30*25*6

WA

30

6

25

60 / 80 / 120 / 180 / 240 / 320

40*25*6

WA

40

6

25

60 / 80 / 120 / 180 / 240 / 320

50*25*6

WA

50

6

25

60 / 80 / 120 / 180 / 240 / 320

60*25*6

WA

60

6

25

60 / 80 / 120 / 180 / 240 / 320

80*25*6

WA

80

6

25

60 / 80 / 120 / 180 / 240 / 320



Precautions for use



1. Select appropriate sandpaper grit based on workpiece material and grinding needs (coarse grit for rapid material removal, fine grit for precision grinding and polishing).

2. Wear protective gear (such as goggles, gloves) during high-speed rotation to prevent flying debris from causing injury.

3. Avoid prolonged grinding in the same area to prevent local overheating and deformation of the workpiece or excessive wear of the sandpaper.



Tips



Before use, please read the user guide carefully and wear special protective gear to ensure safe use.
